From Rail Operation Safety to Workforce Protection

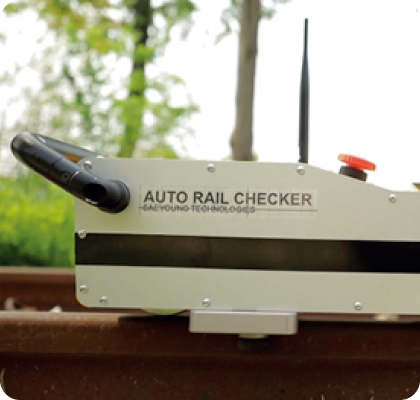

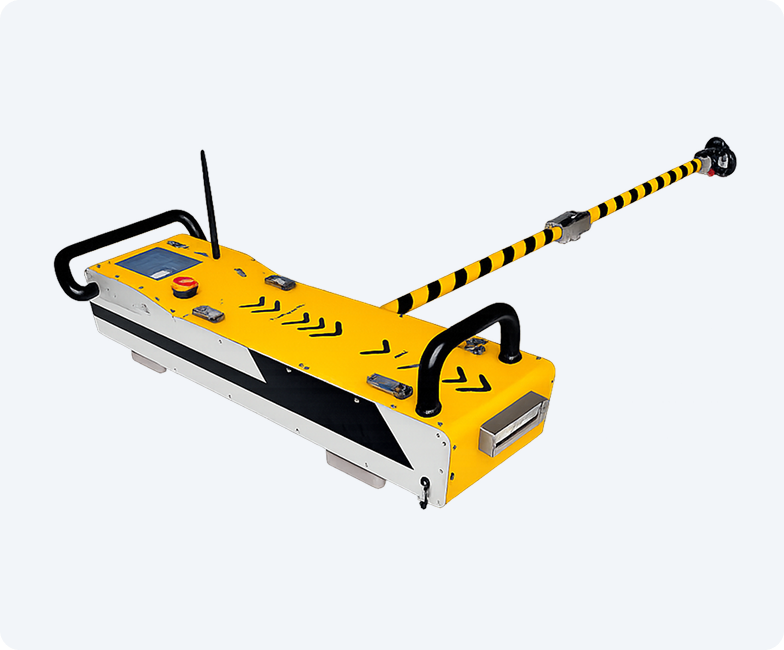

RC
Roughness Checker
Innovation for future railway maintenance
RC(Roughness Checker) offers an innovative solution for checking for unevenness in a rail surface, such as roughness or corrugation.

Built with state-of-the-art technology, it elevates safety in the work environment while enabling precise measurement and significant time savings.
Watch product video
How?

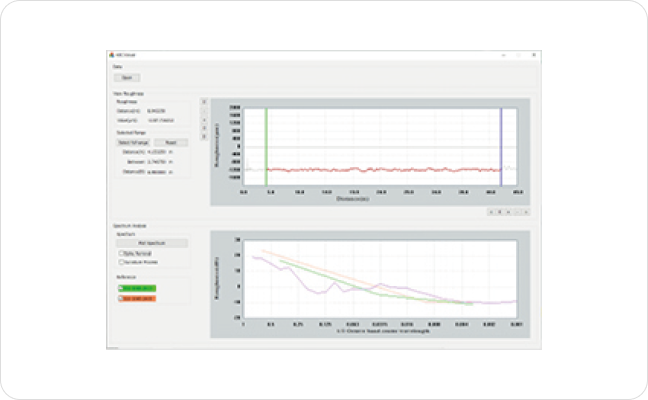

RC uses a proprietary algorithm to process the raw data collected by its three displacement sensors and displays the roughness values. Each roughness value can be converted into a frequency, so the user can compare it with ISO3095 and determine when to grind rails. The sensor technology allows RC to detect rail corrugation as well.

Operation

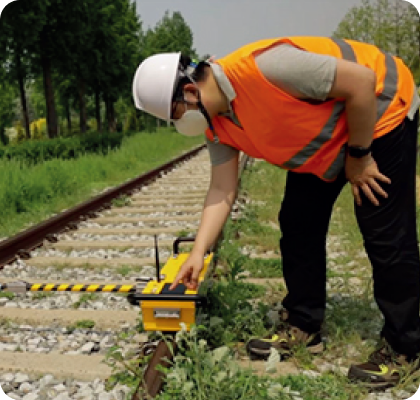

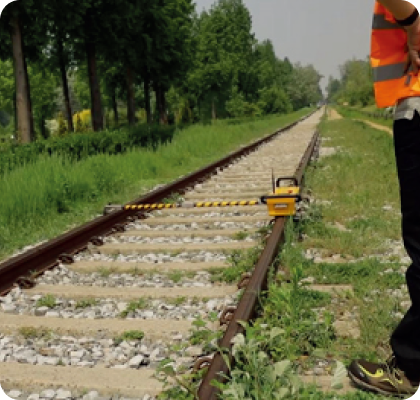

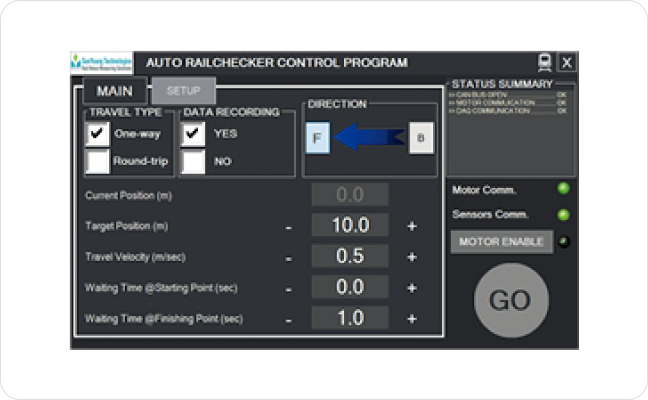

Ease of operation is another outstanding feature of RC. RC runs automatically after you set the distance (2 km max.) and then returns to the starting point. The internal motor means a user does not need to push/pull the device manually like conventional solutions, saving considerable time and effort! The user can monitor the device’s status via wifi and can remain to the side of the rails, keeping the user safe from accidents.

Fully Automatic & Embedded Speed Controller (15 km/h max.)

Multiple measurement (three displacement sensors)

Automatic operation and return with a real-time controller

Data Fusion & Integration System

Power to support over two kilometers of measurement and operation

Also compatible with tramway track measurement

Compatible with coming versions of automatic acoustic rail grinding machines

RC Key Features
Innovative
Compared to more conventional techniques, RC is an innovative solution. It’s faster, safer, more accurate, and more convenient.
Accuracy
Multiple sensors simultaneously measure the rails’ roughness at a constant velocity thanks to its automatic operation, and improved results are guaranteed by the internal algorithm.
Faster
RC operates with an internal motor. It can cover more area than conventional manual devices. You can check more areas and finish your jobs in less time.
Convenience
RC operates independently, meaning the only thing that the operator needs to do is to check whether the device is running properly and download the data after the operation. There is no need to push and/or walk with the device as with other conventional alternatives.
Specifications
Item Technical data
Automation Constant speed controller
Maximum speed 15 km/h
Measuring speed 0.5 m/s (1 mm interval ), 1.0 m/s (2 mm interval)
Repeatability Better than 2 ㎛ RMS 100~300 mm
Measurement distance Maximum 2 kilometers, Minimum 5 meters
Data storage sizes Under 1.5 MB per 10 meters, Requires USB 2.0 storage
Measuring principle 3 Displacement sensors
Data collection, signal processing 1 or 2 mm interval
Display 7 inches touch screen
Computing and software Embedded controller and user-selectable filters
Output Raw displacement (㎛) vs. distance (mm)
ASCII data export
Output compatible with requirements of - EN 13231-3:2006 and 2012
- EN ISO 3095:2005
- EN 15610:2009
Operation voltage DC 24 V
Battery Lithium‑ion 25.9 V / 11.4 Ah / 295 Wh (2 units installed)
Charger Input : AC 220 ~ 240 V, 60 Hz
Output : DC 29.4 V, 5 A(Charging time : 2Hr)
Operation temperatures and humidity 0 ~ 40 ℃ (under 70% RH)
Storage temperatures and humidity -10 ~ 50 ℃(under 80% RH)
Dimension 850 X 300 X 250 (mm)
Weight 20 kg device only, 40 kg with all accessories including a carrying case
