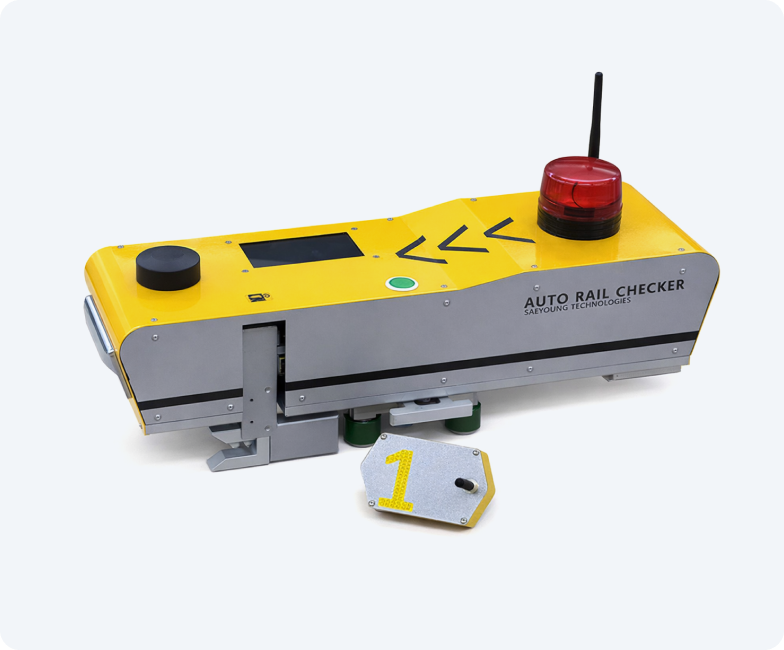

Train Detection Worker Protection Robot
Train Detection Worker Protection Robot
This device informs personnel working on a track when a train is entering the same track. It operates in an innovative manner using lights and sounds that are easy to notice in a noisy working environment.
Watch product video
Function

The device automatically installs a sensor at the distance set by the user and returns.

The device communicates wirelessly with the installed sensors to monitor trains entering the same track.

When a train entry is detected on the track, the device notifies the user with a warning light and buzzer that are effective even in a noisy working environment.

Magnetic sensor installation is easy and leaves no traces after removal.

The sensor is installed to the side of the track so it does not interfere with the operation of the trains and the sensor is not damaged.

After work is completed, the recall command causes the equipment to travel to the location where the sensor was installed and safely retrieve it.

Easy to use

Simply enter the distance at which you want to install the sensor and execute the command.

The device installs the sensor, returns, and then removes it upon the completion of work.

Users can monitor the communication status through the sensor.

Up to four sensors can be set, and monitoring is possible in both directions from the working position.

Major Specifications

4.3-inch touch display

Fully automated speed/position control (max speed 12.5 km)

Number of sensors capable of simultaneous communication: 2

Maximum sensor attachment distance: 1 km

Maximum sensor communication distance: 2 km without obstacles

Specifications
Item Technical data
Automation Speed controller and electrical servo actuators
Maximum speed 12.5 km/h
Sensor attachment method Magnetic
Sensor attachment distance Maximum 1 km
Sensor type and distance acceleration and Infrared, within 80 cm vertically
Communication method Wireless (800 MHz)
Communication distance Maximum 2 km (without obstacles)
Maximum sensors 2
Display 4.3-inch touch screen
Battery Main module Lithium-ion 25.2 V / 3.9 Ah / 98.28 Wh (Operating time: approx. 6 hours)
Sensor Lithium‑ion 3.7 V / 2.35 Ah / 8.46 Wh (Operating time: approx. 12 hours)
Operation voltage Main module DC 12 V
Sensor DC 3.7 V
Charger Main module Power Input: AC 100–240 V, 50/60 Hz, 1 A Charging
Output: DC 29 V, 4 A (Charging time: approx. 1 hour)
Sensor USB‑C type 5 V, 1 A (Charging time: approx. 1.5 hours)
Operating temperature and humidity 0 ~ 40 °C (under 70% RH)
Storage temperature and humidity -10 ~ 50 °C (under 80% RH)
Dimensions 600 × 180 x 200 (mm)
Weight 7.75 kg (1 device and 1 sensor only), 17.75 kg with all accessories including the carrying case
